Description

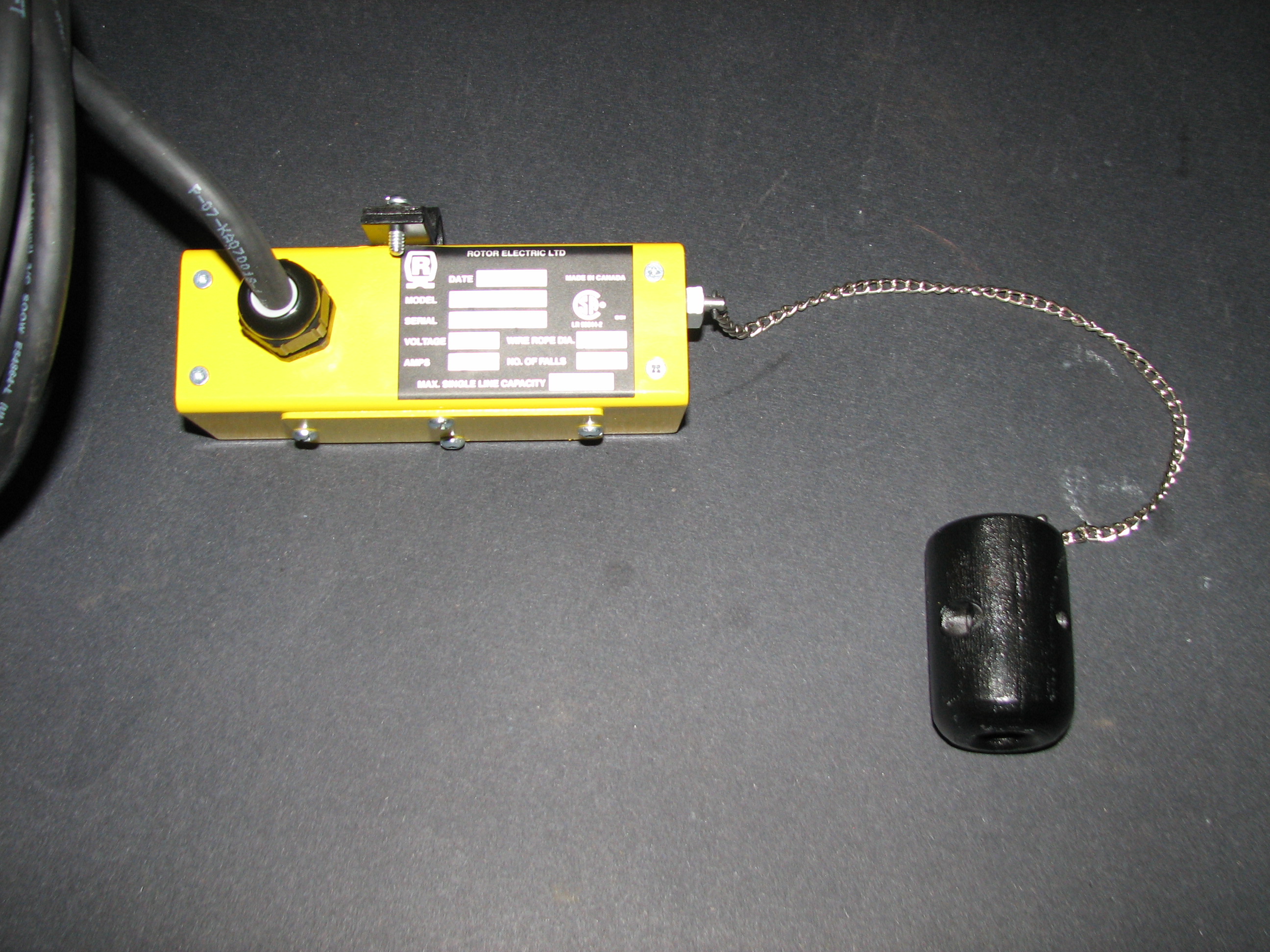

Part # : RB10-UP
Suits Hoists with Wire Rope Size of : 5 mm (3/16″) and higher
Type : Wire Rope Hoist – Standard
This unit offers anti-two block ultimate upper limit protection. It can be custom built to suit any hoist with a wire rope greater than 5 mm (3/16″). The limiter is installed onto a hoist at the rope’s dead end or equalizer sheave.
An Upper Limiter determines how high you can lift a load. If you exceed the maximum lifting height the Upper Limit Switch will cut power to the up control, forcing you to move the load down. An Upper Limiter is an excellent way to protect against accidents and expensive damage caused by two-block, when you lift the hoist block into the drum.
